2BFG-N Series-Simple Roller Model(No Rotary Tiller)


Advantages:

1. Can be installed on any rotary tiller or any land preparation implements to achieve rotary tillage, furrowing, sowing, covering and compacting in one step.
2. If you have a rotary tiller or any land preparation implements, this is your best choice.
3. Precise dosing and precise lateral distribution over the entire working width.
4. Easy setup and convenient calibration test using smart tablet app.

Design features:

1. 8 rows (75L/150L/350L hopper) row range: 1 to 8 outlets (optional)
   12 rows (100L/300L hopper) row range: 1 to 12 outlets (optional)
2. Intelligent tablet app accurately controls seeding volume.
3. Adjustable seeding rate from 1 to 300 kg/ha.
4. Equipped with a blower driven by a dual 12-volt electric motor.
5. The shaft roller is driven by a stepper motor.
6. The air flow evenly delivers the seeds into flexible plastic hoses.
7. Radar control synchronizes tractor speed and seed rate for uniform material application regardless of tractor speed.
8. Multiple seeding rollers (optional), low tank level sensor alarm.
9. Rugged design, easy to operate and install on most implements.
10.Working width: 1-6 m.
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • 2BFG-N Series


101

Standard equipment


·10" control console
·30 m seed lines.
·Standard seeding shaft for granular seeds.
·Cable for connecting to the battery.
·Calibration kit, electronic scales for weighing seeds.

·Radar for determining speed.

·Soil tillage implement (seeder,ditching disc,compacting roller)



Seed dosing mechanism (seeding shaft)


YongXiang seeders use different metering shafts for different types of granular seeds or fertilizer. Correct selection of the shaft ensures accurate seeding dosage. This is extremely important when using low seeding rates and small seed sizes. Replacing the sowing shaft for various granular seeds, such as rice, wheat ,soybean ,sorghum, rape ,maize ,phacelia, lupine, mustard, alfalfa, radish, etc., is carried out without the use of tools.

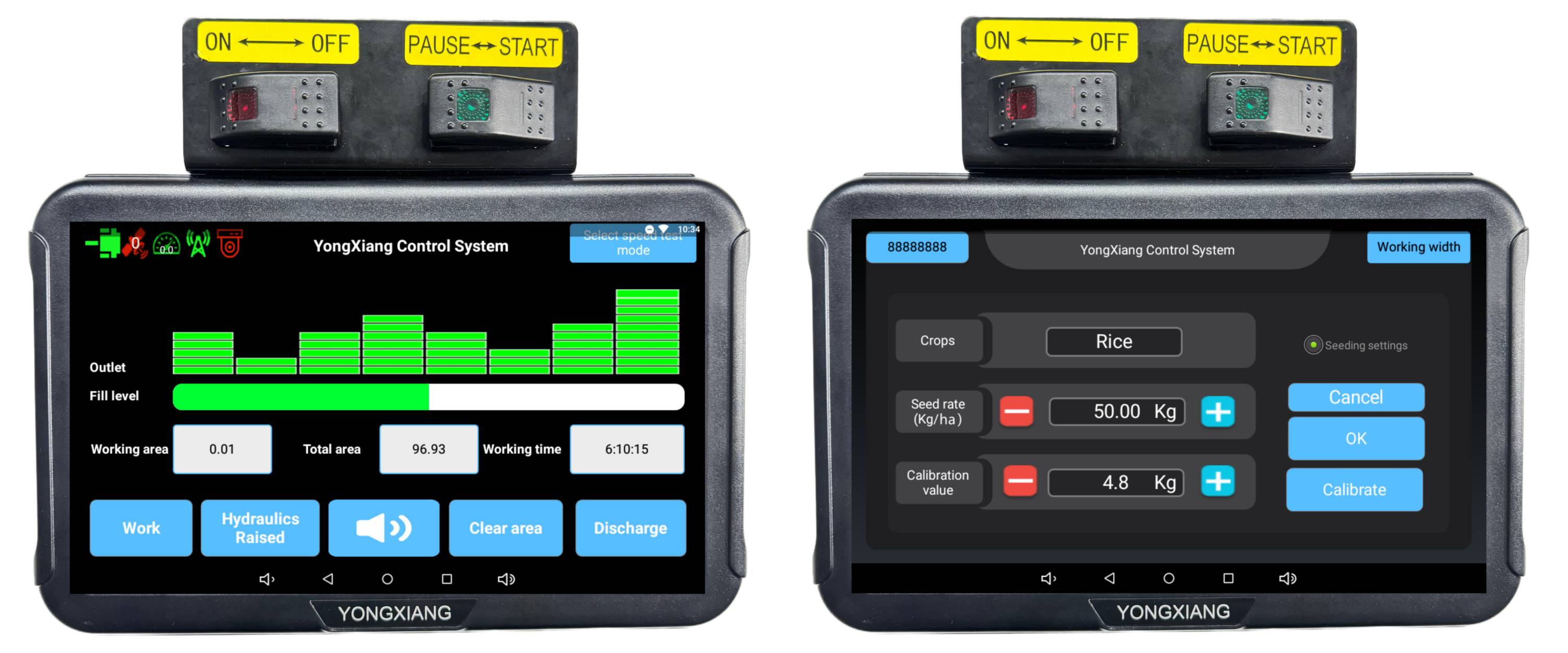

Application management console (tablet)


The large and contrasting 10-inch console allows the operator to monitor and adjust key planting parameters in any lighting conditions.
Simple operation, calibration, emptying of remaining material, monitoring the seed level in the hopper in real time.

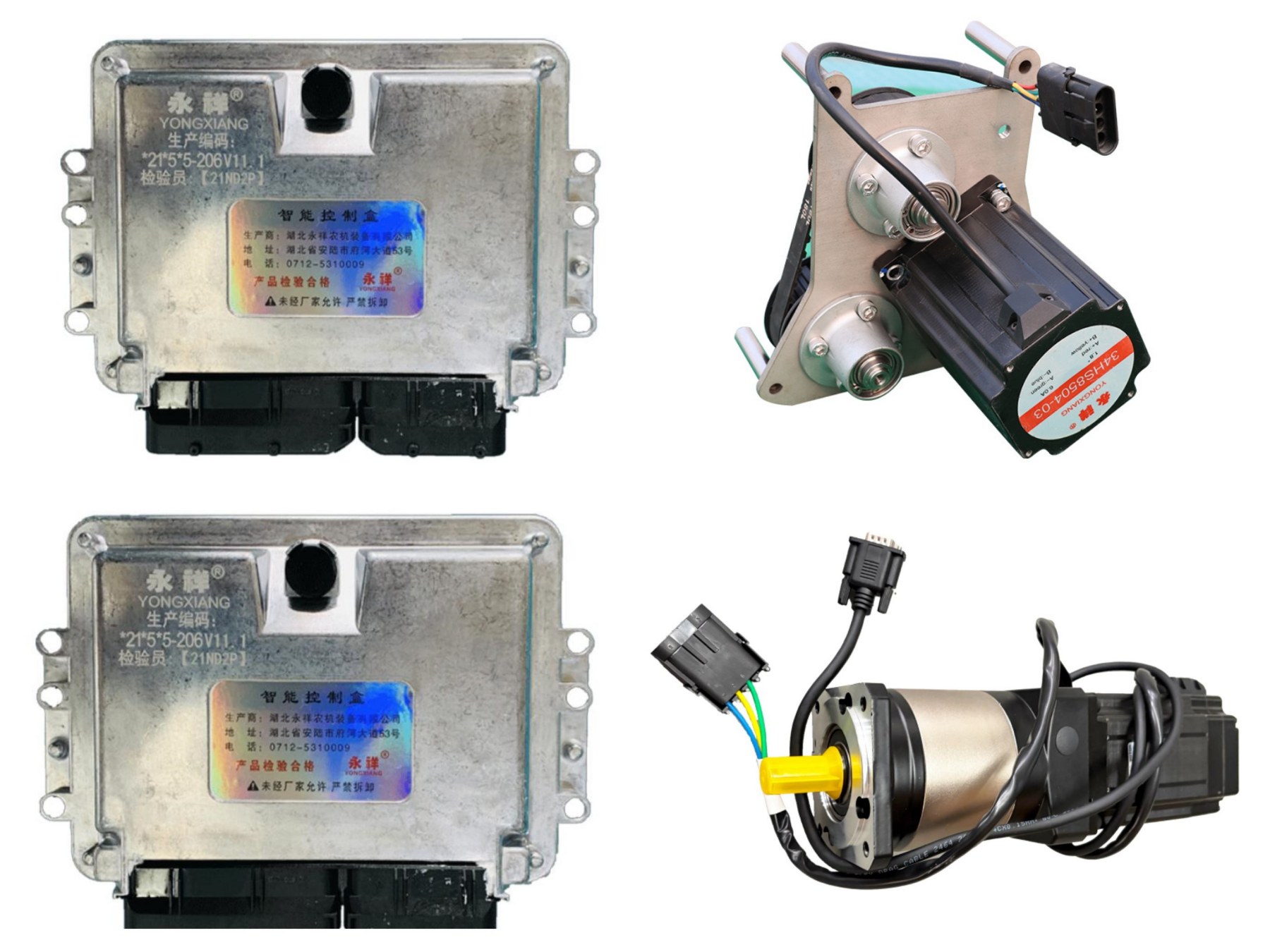

Control system and drive


The exact amount of seed applied is ensured by a correctly selected shaft, precise synchronization of the speed of the metering shaft and the desired value of the seeding rate.

The YongXiang seeder is equipped with a 12V stepless electric motor, which is continuously monitored and adjusted by the central control system to continuously ensure a constant seeding rate.


Electric fan (blower)


Two 12V electric fans create a powerful air flow that instantly transports seeds through the seed tubes to the baffles or pipe tubes, ensuring an even supply of seeds. The fans are protected by an air intake mesh that prevents the entry of straw and debris.


Radar sensor for measuring the speed of the seeder


YongXiang seed drills are equipped with a radar sensor that measures the forward speed and transmits the exact speed to the control console. This ensures synchronized material flow (seeding shaft rotation speed) regardless of whether you are slowing down or speeding up.


Agitator and seed level sensor


The seed tedder is installed directly above the spool shaft to avoid seed caking and ensure a continuous and gentle seed flow. There is a level sensor at the bottom of the hopper. This allows you to control and timely receive information about the need to load the bunker.


Independent locking and opening of outlets


The seeder is equipped with a specially designed L-shaped plug, with which you can plug the seed tubes if necessary. When the long part of the plug is inserted into the seeder, the corresponding outlet hole is blocked and the seeds do not flow through the hole into the chamber. Otherwise, when the short part of the plug is inserted into the seeder, thecorresponding hole will open and the seeds will flow again.Having a seeder with 8 outputs, it is quite easy to get a unit with 3, 4...7 outputs, depending on the working width of the implement.



微信图片_20240514165351

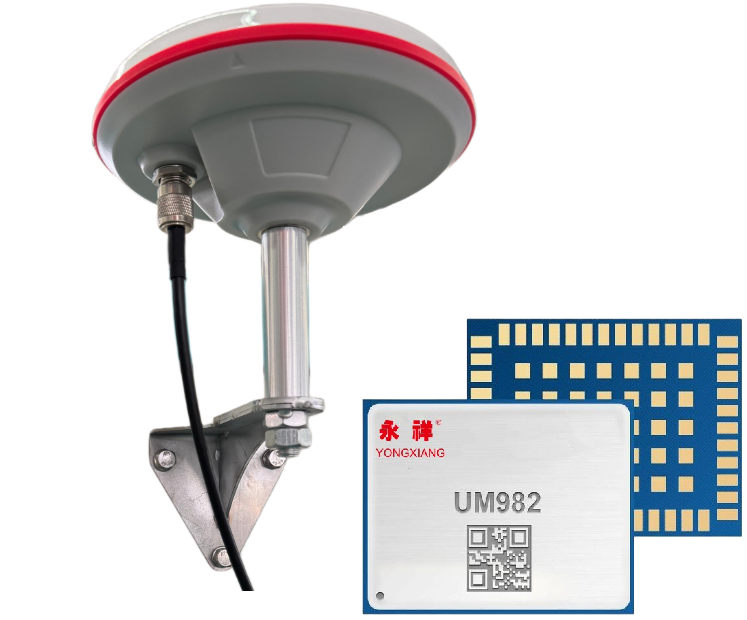

GPS Positioning Chip


Locate the position of the seeder and watch the sowing situation remotely in real time


1718591800227

Camera


Monitor the seeding process in real time on the console.


1717556507307

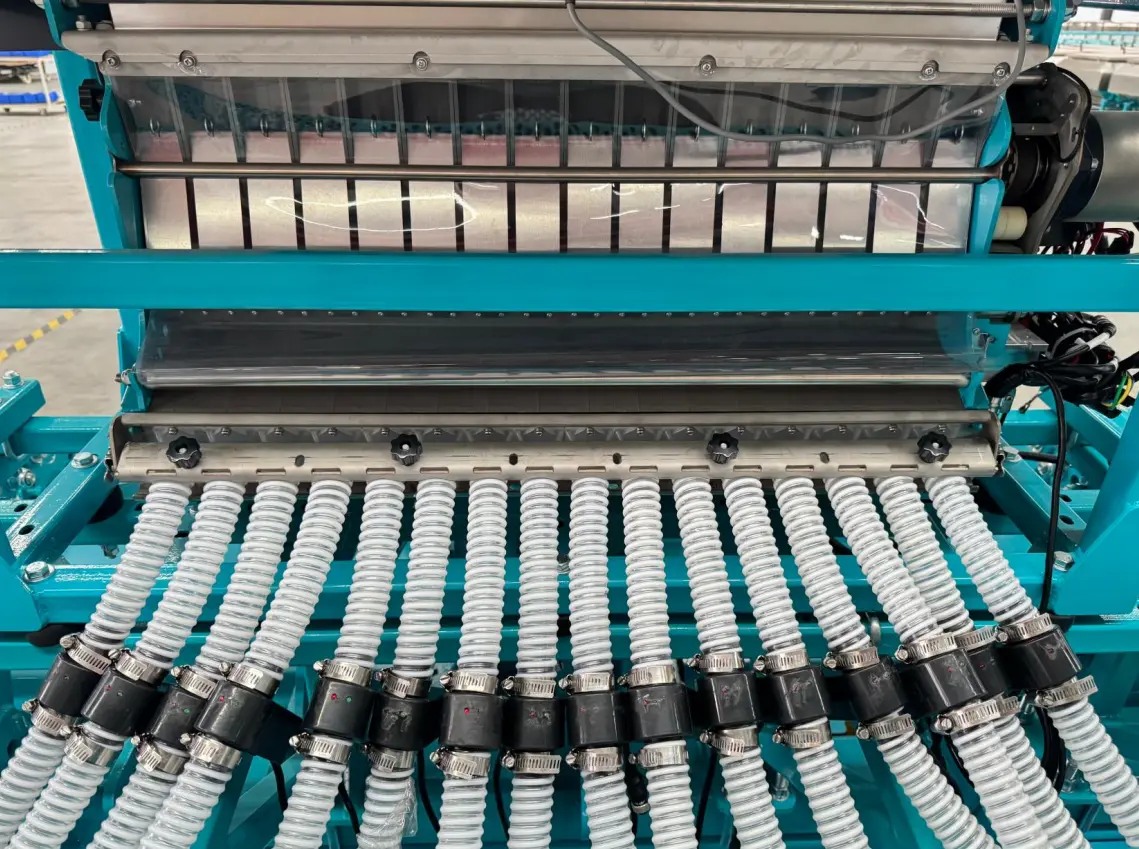

Seed tube clogging sensors


We came to the conclusion that without sensors for clogging of the seed tubes it is impossible to organize continuous, skip-free sowing. They are therefore included as standard on every seed drill. Information about clogging of the seed tube is displayed on the console.




Broadcast (fan) or row sowing


The seeder ensures uniform distribution of seeds regardless of wind conditions.
The standard equipment of the seeder includes 8 or 12 partitions with U-shaped brackets (bumpers), which are used for fan sowing. When sowing in rows (optional), instead of bumpers, metal outlets in the form of tubes are installed at the end of the seed tubes.

Item

Unit

Design value

Model

/

2BFG-N8

2BFG-N12

Attachment to Tractor

/

3-point linkage mounted

Supporting Power

HP

≥80

≥90

Dimension(Lxwxh)

cm

230X(230,260,280,300,330)X186

Working Speed Range

km/h

2-6

Working Efficiency

hm²/h

0.4-1.8

Working Width

m

2/2.3/2.5/2.7/3(Corresponding to the tillage width of the rotary tiller)

Tilling Depth

cm

(2.3m or less)8-16/(above 2.3m)12-18

Row Spacing

cm

15-30(Adjustable)

Working Rows

/

1-8(Adjustable)

1-12(Adjustable)

Transmission Type Of Rotary Tillage

/

Intermediate transmission

Design Speed Of Blade Roller

r/min

220

Maximum Turning Radius Of The Blade Roller

mm

245

Rotary Blade Mode

/

IT245

Total Rotary Blade Qty

pcs

60/64/68/72/88(Corresponding to the tillage width of the rotary tiller)

Seeding Trencher Type

/

Disc

Seeding Depth Adjustment Range

mm

0-50

Seed Hopper Capacity

L

75

100

Seed Rate Adjustment Method

/

Realized precision sowing through intelligent precision electric drive control
system and touch screen tablet control,digital intelligent input,radar speed
measurement synchronous control,detection automatic variable adjustment

Sowing Transmission Type

/

Stepper motor

Blower Fan Type

/

Electric

Soil Cover Type

/

Compacting roller

Compacting Equipment Type

/

Compacting roller
