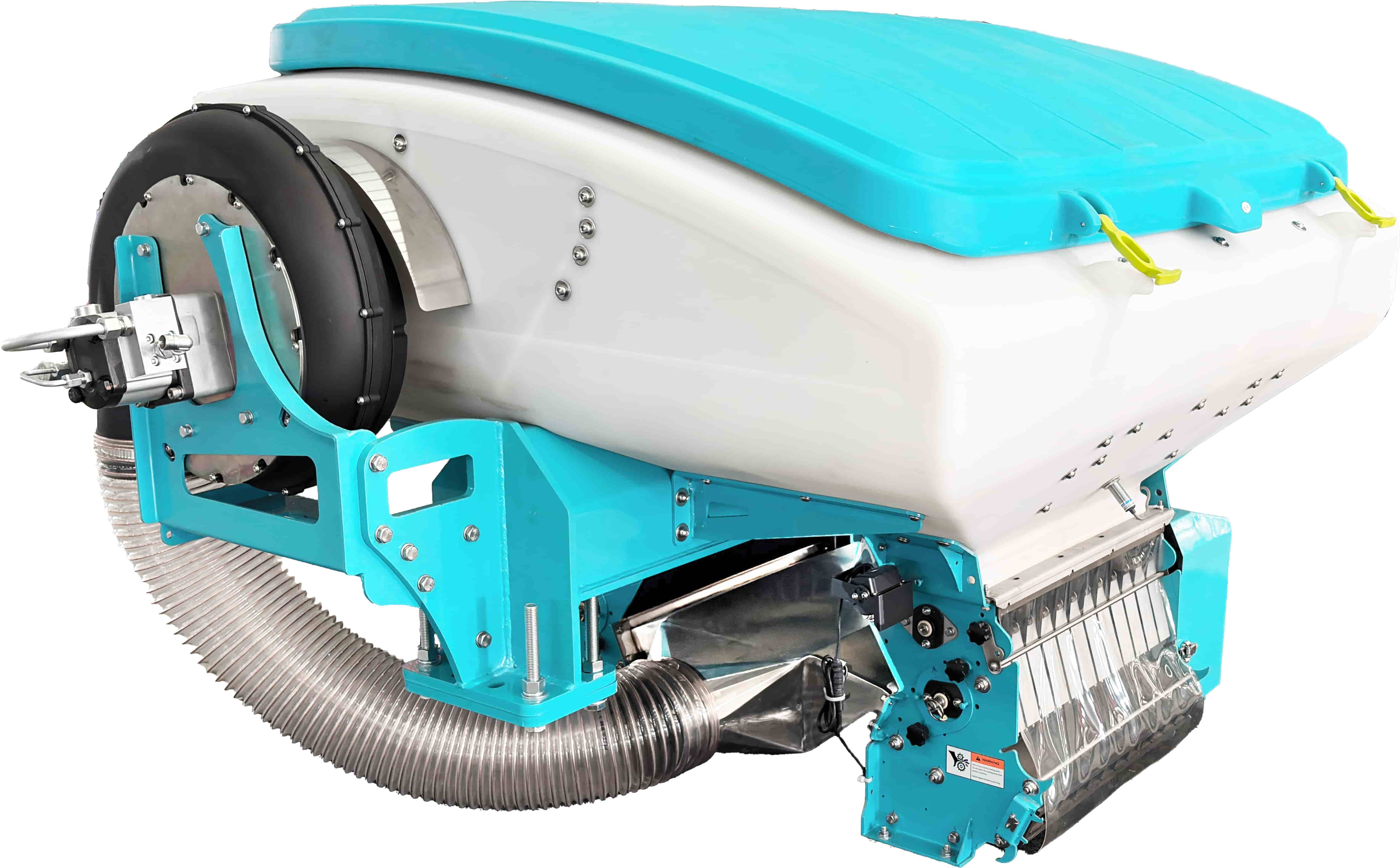

2BDGS - 12S - L600
YongXiang
The seed tedder is installed directly above the spool shaft to avoid seed caking and ensure a continuous and gentle seed flow. There is a level sensor at the bottom of the hopper. This allows you to control and timely receive information about the need to load the bunker.

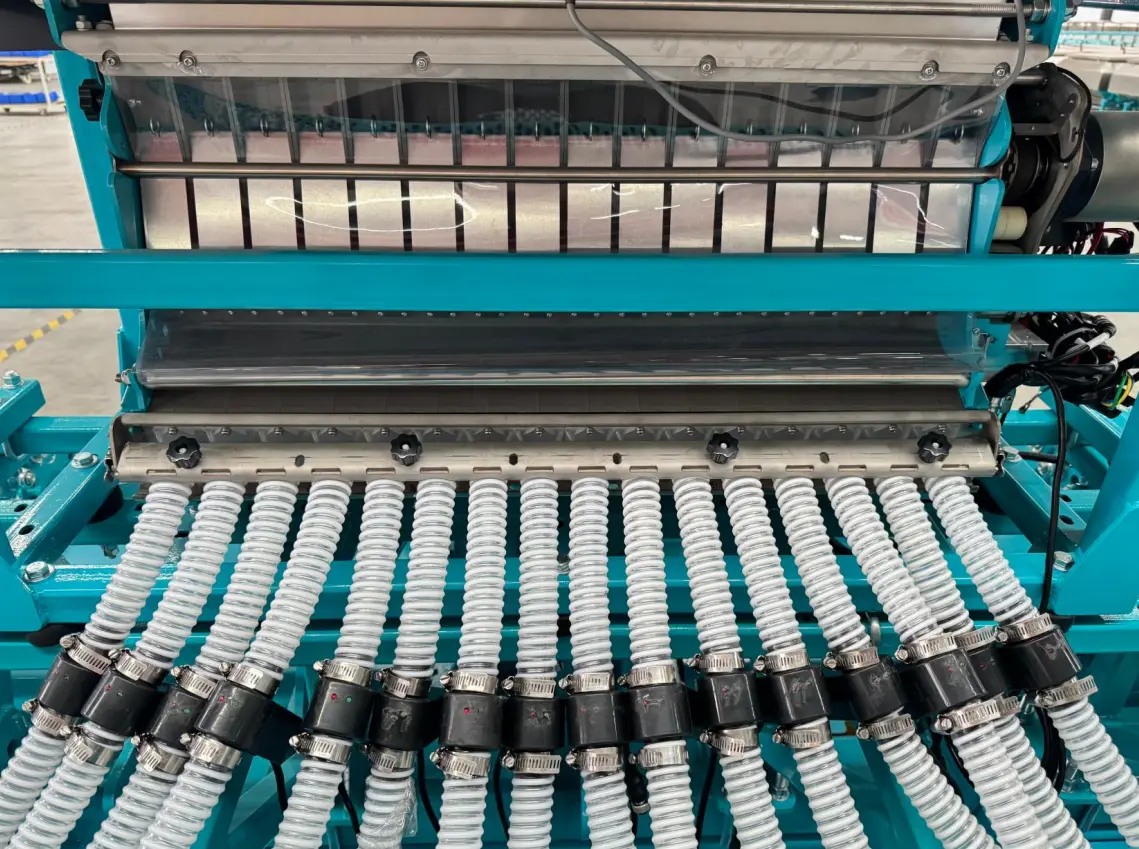

Independent locking and opening of outlets
The seeder is equipped with a specially designed L-shaped plug, with which you can plug the seed tubes if necessary. When the long part of the plug is inserted into the seeder, the corresponding outlet hole is blocked and the seeds do not flow through the hole into the chamber. Otherwise, when the short part of the plug is inserted into the seeder, the corresponding hole will open and the seeds will flow again.Having a seeder with 8 outputs, it is quite easy to get a unit with 3, 4...7 outputs, depending on the working width of the implement.

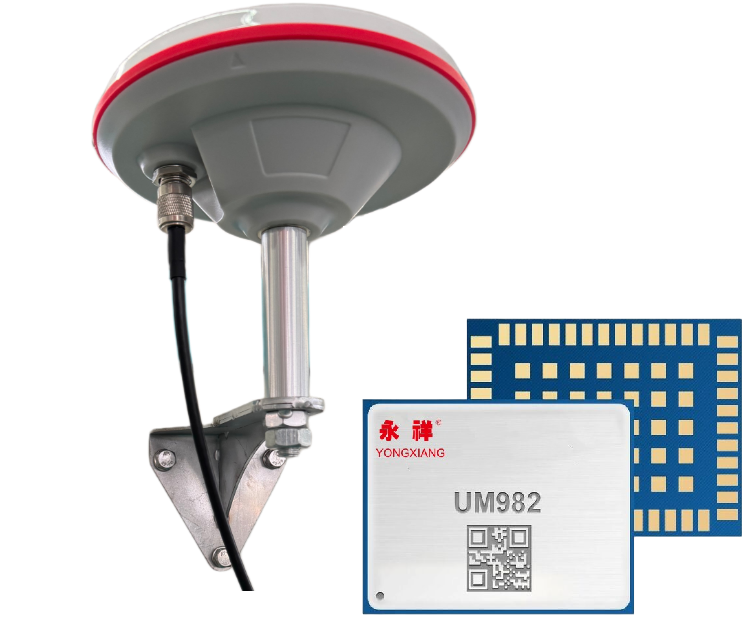

GPS Positioning Chip
Locate the position of the seeder and watch the sowing situation remotely in real time

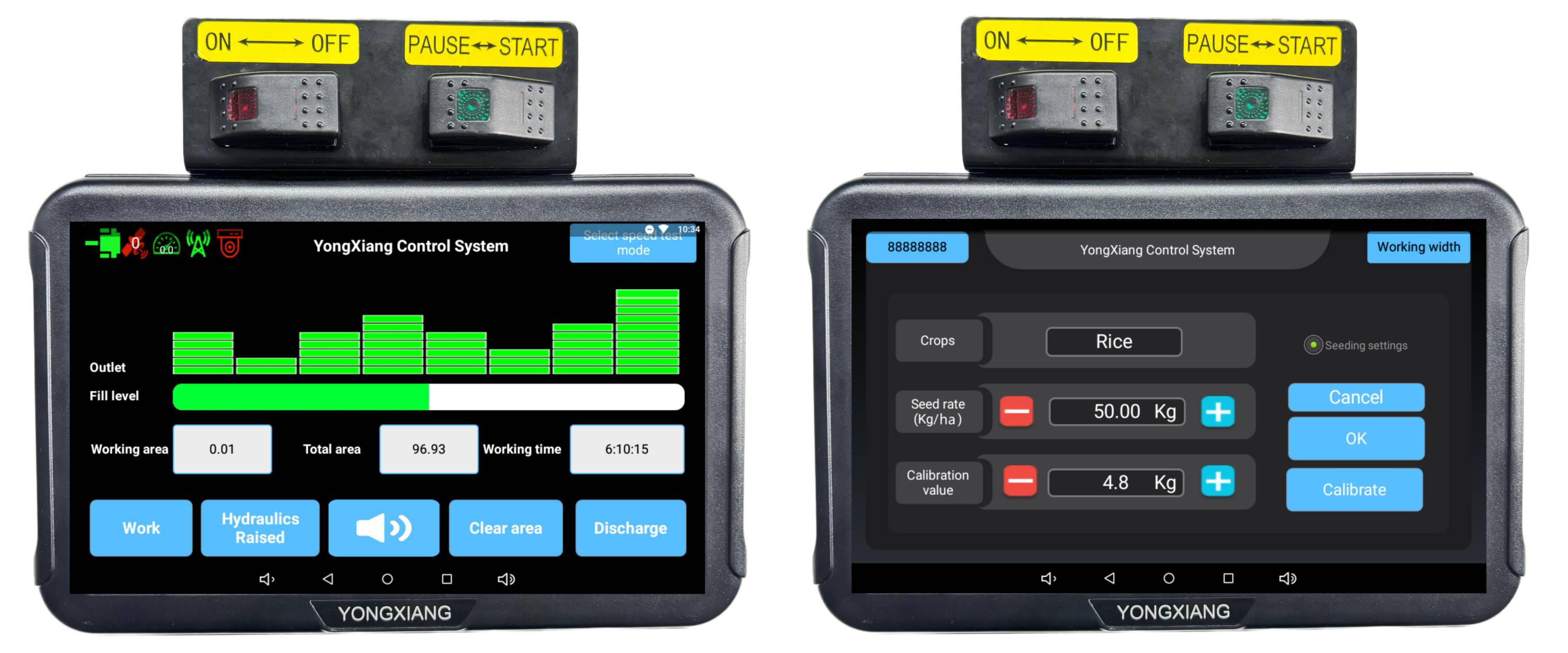

Monitor the seeding process in real time on the console.
Broadcast (fan) or row sowing
The seed tedder is installed directly above the spool shaft to avoid seed caking and ensure a continuous and gentle seed flow. There is a level sensor at the bottom of the hopper. This allows you to control and timely receive information about the need to load the bunker.
Independent locking and opening of outlets
The seeder is equipped with a specially designed L-shaped plug, with which you can plug the seed tubes if necessary. When the long part of the plug is inserted into the seeder, the corresponding outlet hole is blocked and the seeds do not flow through the hole into the chamber. Otherwise, when the short part of the plug is inserted into the seeder, the corresponding hole will open and the seeds will flow again.Having a seeder with 8 outputs, it is quite easy to get a unit with 3, 4...7 outputs, depending on the working width of the implement.
GPS Positioning Chip
Locate the position of the seeder and watch the sowing situation remotely in real time
Monitor the seeding process in real time on the console.
Broadcast (fan) or row sowing
2BDGS-12S-L600
Advantages:
1. Flexible 2 uses: one is to install in the same direction and use 24 rows to sow the same seed, the second is to install in the opposite direction and use dual 12 rows for sowing and fertilizing simultaneously.
2. Precision pneumatic seeder for all types of granular seed and fertilizer like ,micro granulated fertilizer.,pastures,soybean,wheat,maize,rice,rapeseed,sorghum etc in total coverage. Ideal equipment for the sowing of cover crops with broadcast or row seeding.
3. Precise dosing and precise lateral distribution over the entire working width.

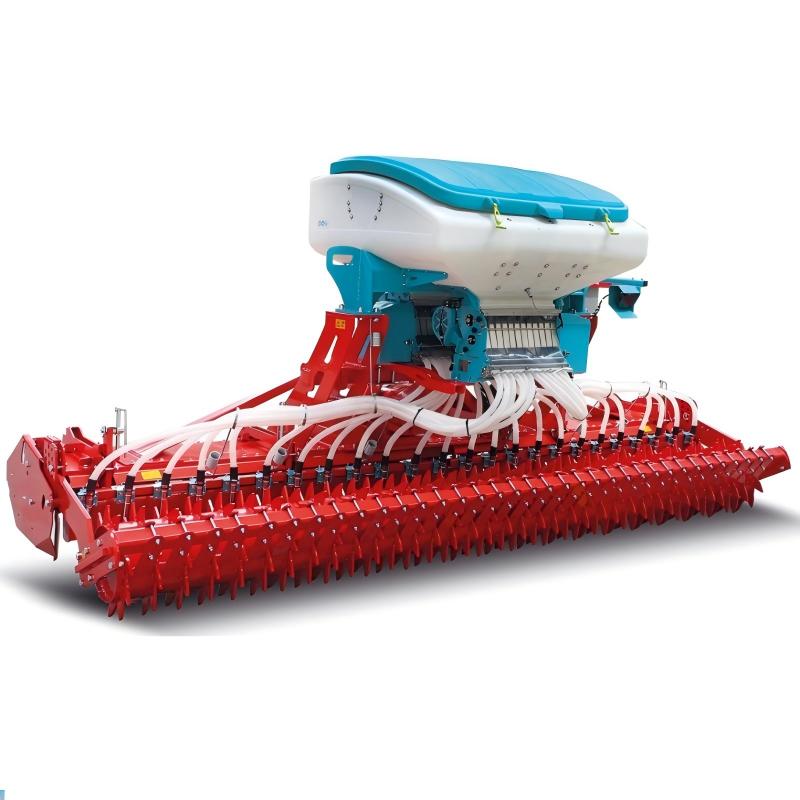

4. Installation options for most implements, such as seeders, machines for processing individual grain crops, implements for agricultural maintenance, implements for tillage, sprayers etc.
5. Easy setup and convenient calibration test using smart tablet app.
Design features:

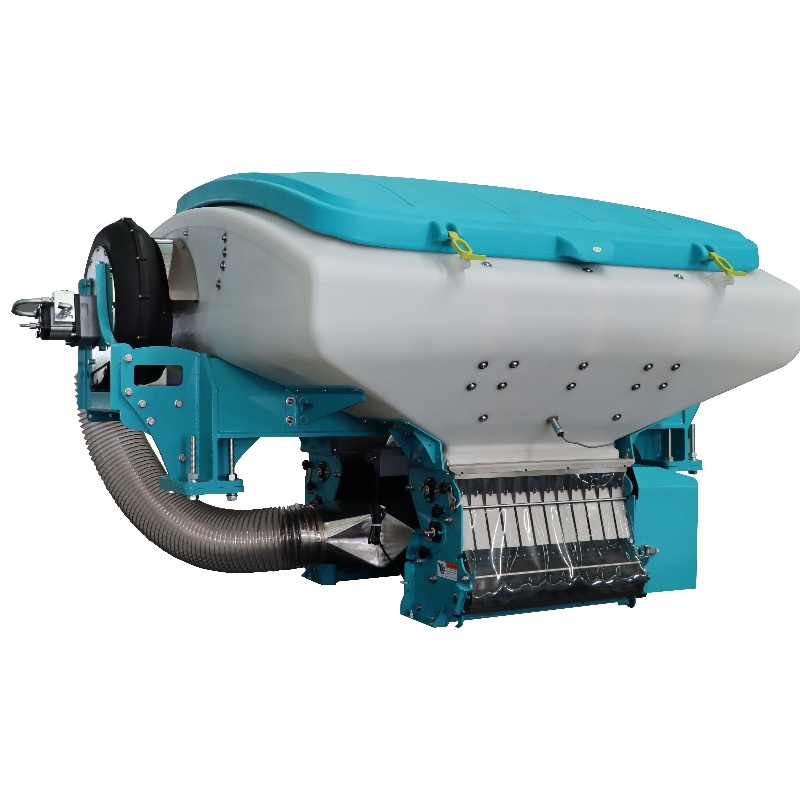

1. Split plastic hopper with a capacity of 600L, rows: from 1 to 12 or 1 to 24 outlets (optional)
2. Intelligent tablet application precisely controls the seeding volume.
3. Electrically operated dosing system (various interchangeable models depending on the seed to be sown) that allows sowing a range of doses from 1 to 300 kg/ha.
4. Pneumatic distribution through an electrically operated turbine with 24 outputs that allow working up to 8 meters wide, depending on the specific weight of the seed.
5. Equipped with two blowers driven by two dual 12-volt electric motors.
6. Working speed of up to 15-20 km/h,equipped with a 10 inch tablet for calibration, control of sowing dose and air flow etc.

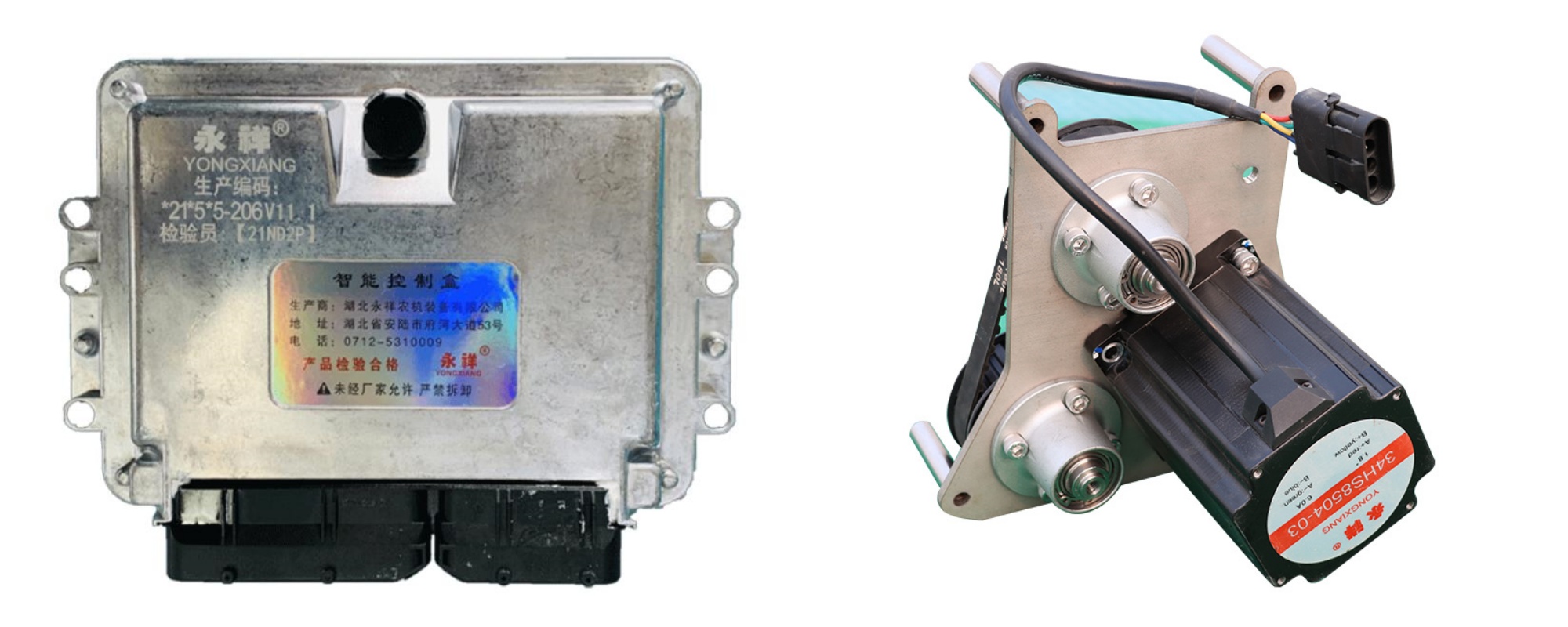

7. The shaft roller is driven by a stepper motor.
8. The air flow evenly delivers the seeds into flexible plastic hoses.

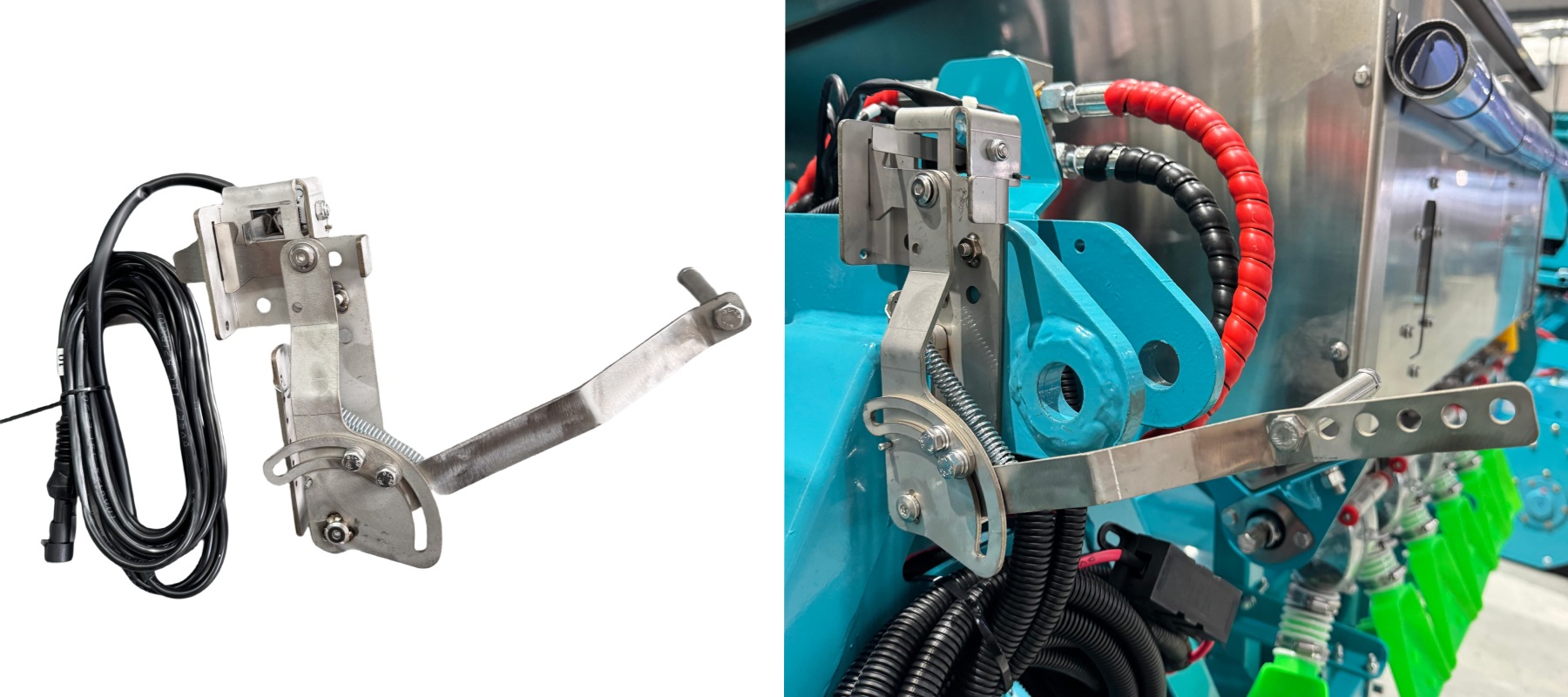

9. Radar control synchronizes tractor speed and seed rate for uniform material application regardless of tractor speed.
10. Multiple seeding rollers (optional), low tank level sensor alarm.
11. Rugged design, easy to operate and install on most implements.
12. Size: 186x137x115 cm. Weight: 380 kg.
Standard equipment:
(1) 10 inch control tablet
(2) speed radar
(3) control box
(4) 2x stepper motor
(5) 2x electric fan
(6) 2x motor control box
(7) 2x booster
(8) 2x Relay
(9) 2x30 meters of hose
(10) calibration cloth bag, calibration scale,2x sowing shaft
(11) 2x sensors-fill level sensor ,2x blockage sensor, 2x motor Sensor
(12) camera to monitor the working status of sowing shaft
(13) 2 sets x broadcast heads or drilling heads
(14) 2x seed agitator
(15) 2x foreign object sieve
(16) boat switch
(17) L-shaped Plug
(18) wiring harness-81P wiring harness,40P wiring harness,serial port screen wiring harness-6m,power harness-4.6m
