Pneumatic 12-row Seeder with 300 L Stainless Steel Hopper (2BDGS-12-L300)


Yongxiang 12-row air seeder (fertilizer spreader) with 300L medium-sized hopper is well adapted to professional agricultural machinery such as combination cultivators, cultivators, disc harrows, compaction rollers and other equipment.

Thanks to a controller, radar or GPS for determining speed, a sensor for monitoring the fullness of the bunker, a dosing shaft with variable rotation speed, the seeded material enters the chamber, where the air flow from a powerful fan carries it into the seed tubes to the bumper plates or metal outlets, from where it is evenly distributed at the surface of the earth. This ensures precise seeding and/or fertilization in strong winds.

Recommended for use for medium-sized farms.
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • 2BDGS - 12 - L300

  • YongXiang

1698834270202(1)(1)(1)

Standard equipment


·10" control console
·30 m seed lines.
·Standard seeding shaft for small seeds.
·Cable for connecting to the battery.
·Calibration kit, electronic scales for weighing seeds.
·Radar for determining speed.


1717558961558

Seed dosing mechanism (seeding shaft)


YongXiang seeders use different metering shafts for different types of green manure and other applied material. Correct selection of the shaft ensures accurate seeding dosage. This is extremely important when using low seeding rates and small seed sizes. Replacing the sowing shaft for various green manures, such as phacelia, lupine, mustard, alfalfa, radish, etc., is carried out without the use of tools.


1717559007361

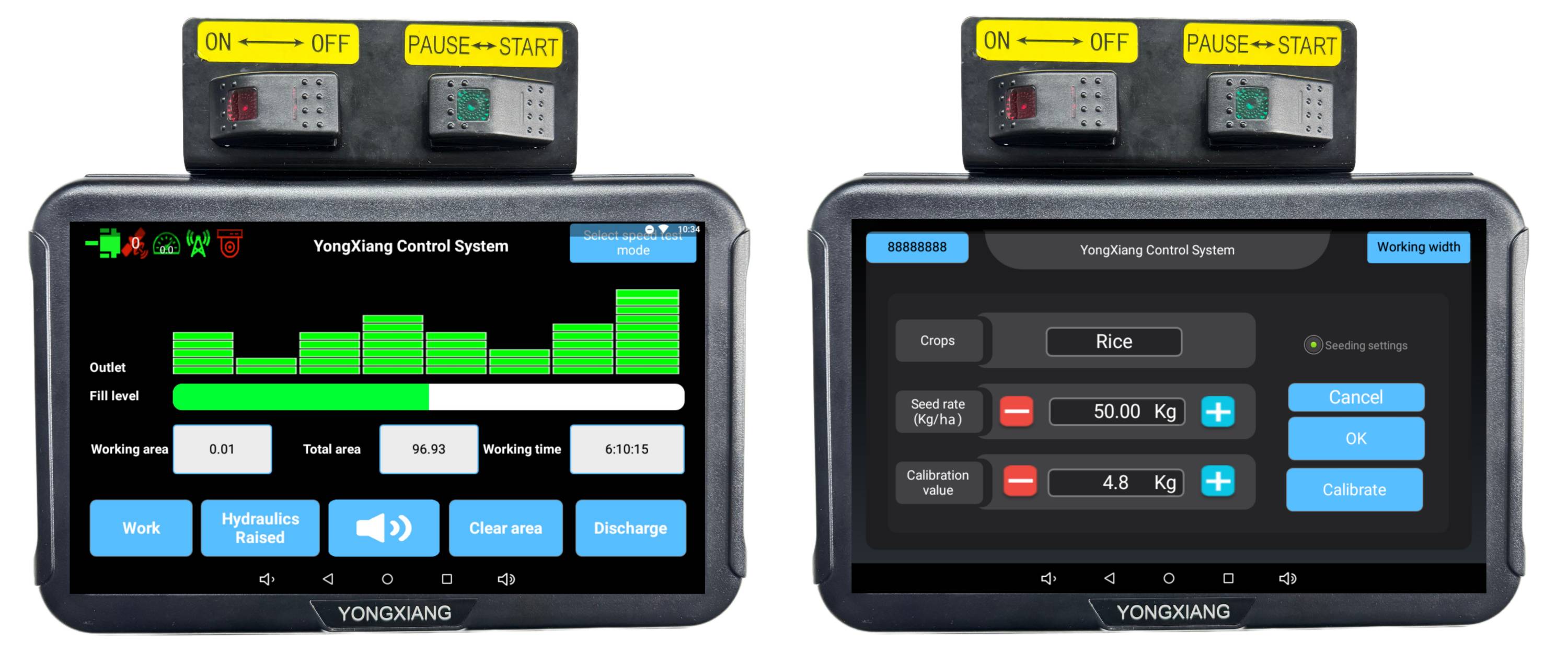

Application management console (tablet)


The large and contrasting 10-inch console allows the operator to monitor and adjust key planting parameters in any lighting conditions.
Simple operation, calibration, emptying of remaining material, monitoring the seed level in the hopper in real time.


1717559283221

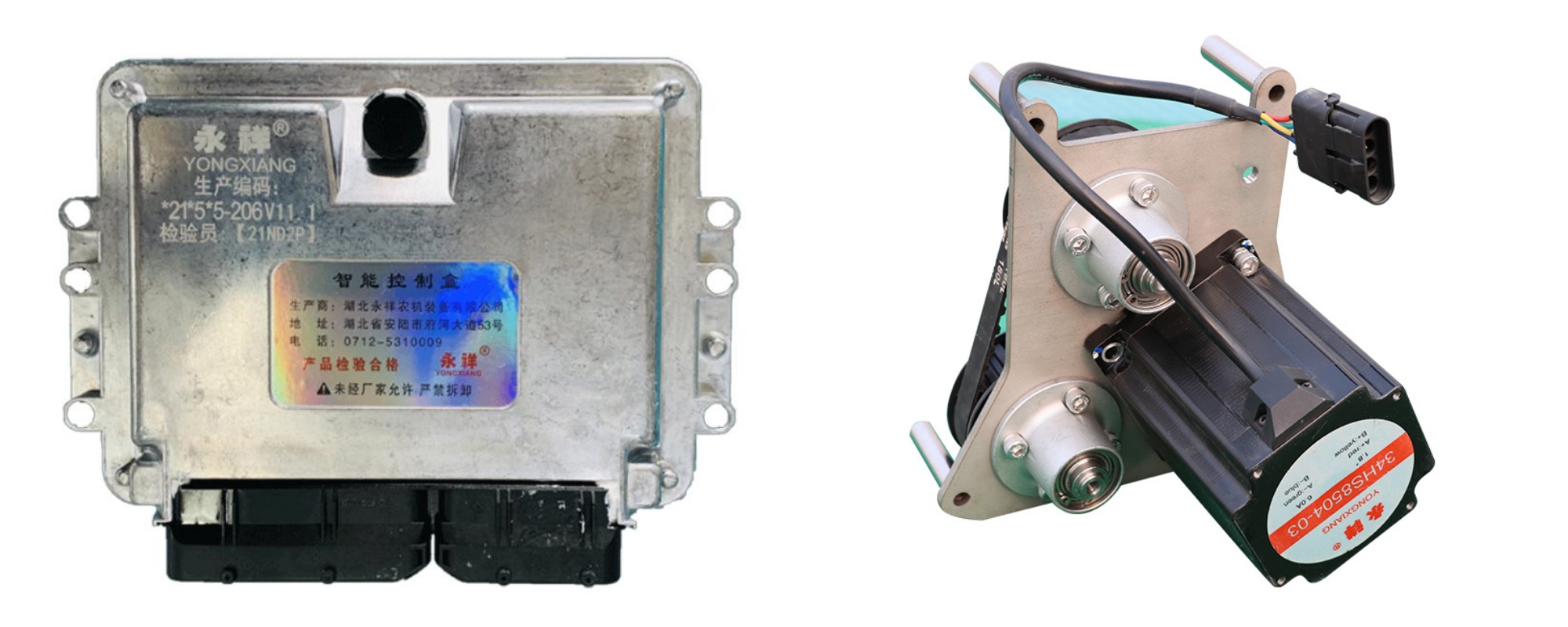

Control system and drive


The exact amount of seed applied is ensured by a correctly selected shaft, precise synchronization of the speed of the metering shaft and the desired value of the seeding rate.

The YongXiang seeder is equipped with a 12V stepless electric motor, which is continuously monitored and adjusted by the central control system to continuously ensure a constant seeding rate.


1717559031461

Electric fan (blower)


Two 12V electric fans create a powerful air flow that instantly transports seeds through the seed tubes to the baffles or pipe tubes, ensuring an even supply of seeds. The fans are protected by an air intake mesh that prevents the entry of straw and debris.


1717559036363

Radar sensor for measuring the speed of the seeder


YongXiang seed drills are equipped with a radar sensor that measures the forward speed and transmits the exact speed to the control console. This ensures synchronized material flow (seeding shaft rotation speed) regardless of whether you are slowing down or speeding up.


1717559040297

Agitator and seed level sensor


The seed tedder is installed directly above the spool shaft to avoid seed caking and ensure a continuous and gentle seed flow. There is a level sensor at the bottom of the hopper. This allows you to control and timely receive information about the need to load the bunker.

1717559221027


1717559626659

Independent locking and opening of outlets


The seeder is equipped with a specially designed L-shaped plug, with which you can plug the seed tubes if necessary. When the long part of the plug is

inserted into the seeder, the corresponding outlet hole is blocked and the seeds do not flow through the hole into the chamber. Otherwise, when the short part of the plug is inserted into the seeder, the corresponding hole will open and the seeds will flow again.Having a seeder with 8 outputs, it is quite easy to get a unit with 3, 4...7 outputs, depending on the working width of the implement.





微信图片_20240514165351

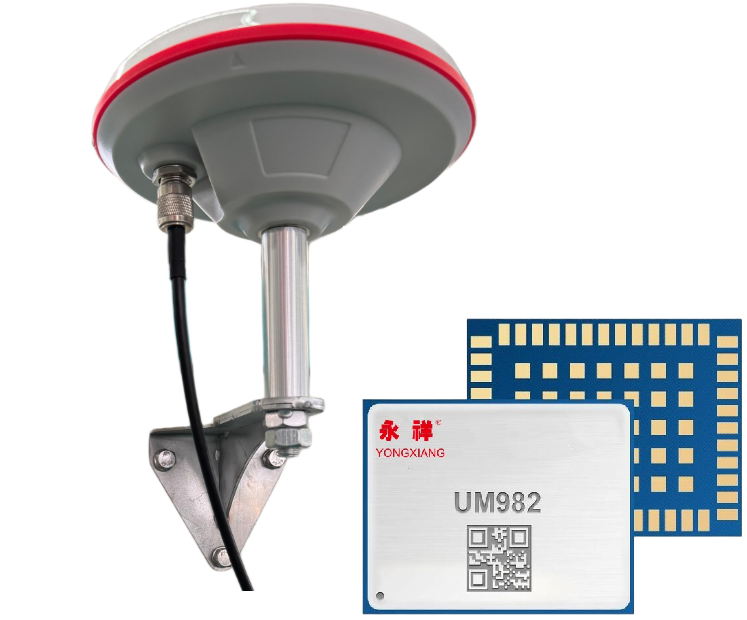

GPS Positioning Chip


Locate the position of the seeder and watch the sowing situation remotely in real time

1718591800227

Camera


Monitor the seeding process in real time on the console




1717556507307

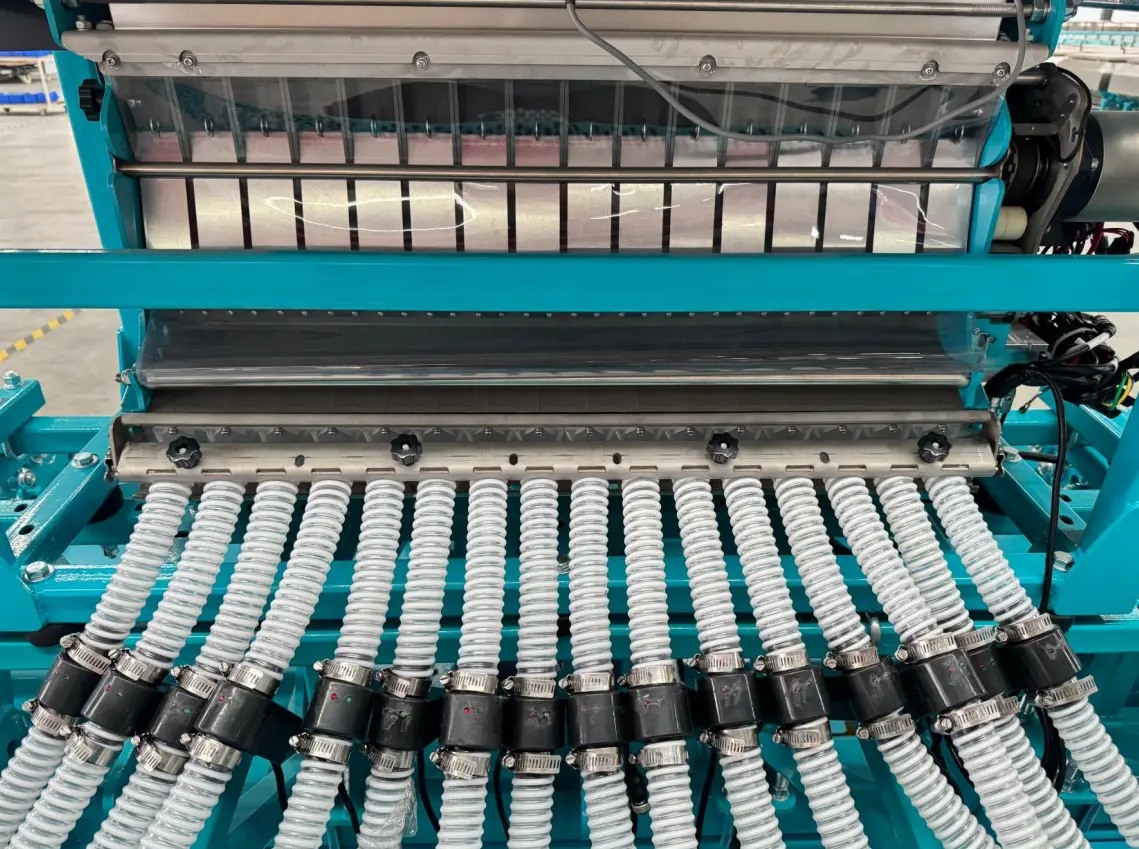

Seed tube clogging sensors


We came to the conclusion that without sensors for clogging of the seed tubes it is impossible to organize continuous, skip-free sowing. They are therefore included as standard on every seed drill. Information about clogging of the seed tube is displayed on the console.


1717559528787


1717559494581

Broadcast (fan) or row sowing


The seeder ensures uniform distribution of seeds regardless of wind conditions.
The standard equipment of the seeder includes 8 or 12 partitions with U-shaped brackets (bumpers), which are used for fan sowing. When sowing in rows (optional), instead of bumpers, metal outlets in the form of tubes are installed at the end of the seed tubes.







2BDGS-12-L300


Advantages:


1. Precision pneumatic seeder for all types of granular seed and fertilizer like ,micro granulated fertilizer.,pastures,soybean,wheat,maize,rice,rapeseed,sorghum etc in total coverage. Ideal equipment for the sowing of cover crops with broadcast or row seeding.

2. Precise dosing and precise lateral distribution over the entire working width.

3. Installation options for most implements, such as seeders, machines for processing individual grain crops, implements for agricultural maintenance, implements for tillage, sprayers etc.

4. Easy setup and convenient calibration test using smart tablet app.


Design features:


1. Stainless steel hopper with a capacity of 300L, rows: from 1 to 12 outlets (optional)

2. Intelligent tablet application precisely controls the seeding volume.

3. Electrically operated dosing system (various interchangeable models depending on the seed to be sown) that allows sowing a range of doses from 1 to 300 kg/ha.

4. Pneumatic distribution through an electrically operated turbine with 12 outputs that allow working up to 8 meters wide, depending on the specific weight of the seed.

5. Equipped with a blower driven by a dual 12-volt electric motor.

6. Working speed of up to 15-20 km/h,Equipped with a 10 inch tablet for calibration, control of sowing dose and air flow etc.

7. The shaft roller is driven by a stepper motor.

8. The air flow evenly delivers the seeds into flexible plastic hoses.

9. Radar control synchronizes tractor speed and seed rate for uniform material application regardless of tractor speed.

10. Multiple seeding rollers (optional), low tank level sensor alarm.

11. Rugged design, easy to operate and install on most implements.

12. Size: 114x78x100 cm. Weight: 140 kg.


Standard equipment:


(1)  10 inch control tablet

(2)  speed radar

(3)  control box

(4)  stepper motor

(5)  electric fan

(6)  motor control box

(7)  booster

(8)  Relay

(9)  30 meters of hose

(10) calibration cloth bag, calibration scale,sowing shaft

(11) sensors-fill level sensor ,blockage sensor, motor Sensor

(12) camera to monitor the working status of sowing shaft

(13) broadcast heads or drilling heads

(14) seed agitator

(15) foreign object sieve

(16) boat switch

(17) L-shaped Plug

(18) wiring harness-81P wiring harness,40P wiring harness,serial port screen wiring harness-6m,power harness-4.6m
