2BFG-A-F Series
It can control seeding synchronously, speed-variably,precisely, accurately and intelligently. Its significant advantages are as follows:
1. Flexible 2 uses: one is to install in the same direction and use 24 rows to sow the same seed, the second is to install in the opposite direction and use dual 12 rows for sowing and fertilizing simultaneously
2. Rotary tilling, fertilizing, trenching, sowing, soil covering, and compacting can be completed at one time, with high work efficiency;
3. Parallel four-bar linkage profiling structure and independent compacting ensure consistent seeding depth and consistent compacting intensity,and can adapt to various complex terrain conditions;
4. The intelligent control system is equipped with a synchronous radar speed measuring device, which can control the seeding amount synchronously,speed-variably, precisely and accurately, and the sowing accuracy can reach more than 95%.
5. Touch control screen, smart APP, and one-click digital input of agronomic parameters make it easy to control.
6. Equipped with various monitoring and detection devices such as fill lever sensors and blockage sensors,the working status of the equipment is fed back to the user through the touch screen in a dual mode of vision and hearing, allowing users to feel at ease, comfortable and work easily.
7. Seed adaptive system, suitable for 1-10mm granular seeds, such as alfalfa, rapeseed, wheat, barley, rice,soybean,sorghum,granular fertilizer, etc., realizing a true multi-purpose machine.
8. The integrated high-pressure pneumatic conveying structure, modular design, compact structure and easy maintenance.
Dual 12 rows (600L hopper) row range: 1 to 12 outlets (optional)
24 rows (600L hopper) row range: 1 to 24 outlets (optional)
Intelligent tablet app accurately controls seeding volume.Rugged design, easy to operate and install on most implements.
Working width: 1-6m.
It can control seeding synchronously, speed-variably,precisely, accurately and intelligently. Its significant advantages are as follows:
1. Flexible 2 uses: one is to install in the same direction and use 24 rows to sow the same seed, the second is to install in the opposite direction and use dual 12 rows for sowing and fertilizing simultaneously
2. Rotary tilling, fertilizing, trenching, sowing, soil covering, and compacting can be completed at one time, with high work efficiency;
3. Parallel four-bar linkage profiling structure and independent compacting ensure consistent seeding depth and consistent compacting intensity,and can adapt to various complex terrain conditions;
4. The intelligent control system is equipped with a synchronous radar speed measuring device, which can control the seeding amount synchronously,speed-variably, precisely and accurately, and the sowing accuracy can reach more than 95%.
5. Touch control screen, smart APP, and one-click digital input of agronomic parameters make it easy to control.
6. Equipped with various monitoring and detection devices such as fill lever sensors and blockage sensors,the working status of the equipment is fed back to the user through the touch screen in a dual mode of vision and hearing, allowing users to feel at ease, comfortable and work easily.
7. Seed adaptive system, suitable for 1-10mm granular seeds, such as alfalfa, rapeseed, wheat, barley, rice,soybean,sorghum,granular fertilizer, etc., realizing a true multi-purpose machine.
8. The integrated high-pressure pneumatic conveying structure, modular design, compact structure and easy maintenance.
Dual 12 rows (600L hopper) row range: 1 to 12 outlets (optional)
24 rows (600L hopper) row range: 1 to 24 outlets (optional)
Intelligent tablet app accurately controls seeding volume.Rugged design, easy to operate and install on most implements.
Working width: 1-6m.
·Radar for determining speed.
·Soil tillage implement (seeder,rotary tiller,ditching disc,compacting roller,parallel four-bar linkage)
The seed tedder is installed directly above the spool shaft to avoid seed caking and ensure a continuous and gentle seed flow. There is a level sensor at the bottom of the hopper. This allows you to control and timely receive information about the need to load the bunker.

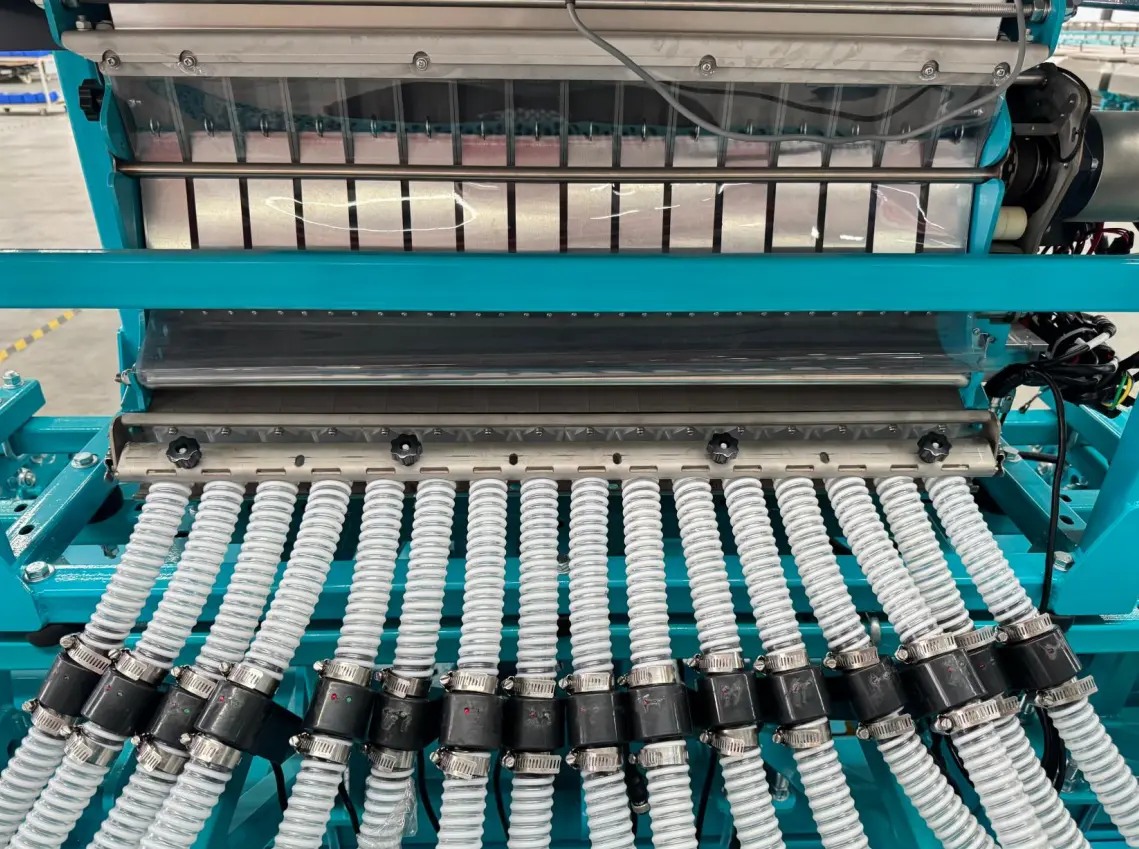

Independent locking and opening of outlets
The seeder is equipped with a specially designed L-shaped plug, with which you can plug the seed tubes if necessary. When the long part of the plug is inserted into the seeder, the corresponding outlet hole is blocked and the seeds do not flow through the hole into the chamber. Otherwise, when the short part of the plug is inserted into the seeder, thecorresponding hole will open and the seeds will flow again.Having a seeder with 8 outputs, it is quite easy to get a unit with 3, 4...7 outputs, depending on the working width of the implement.

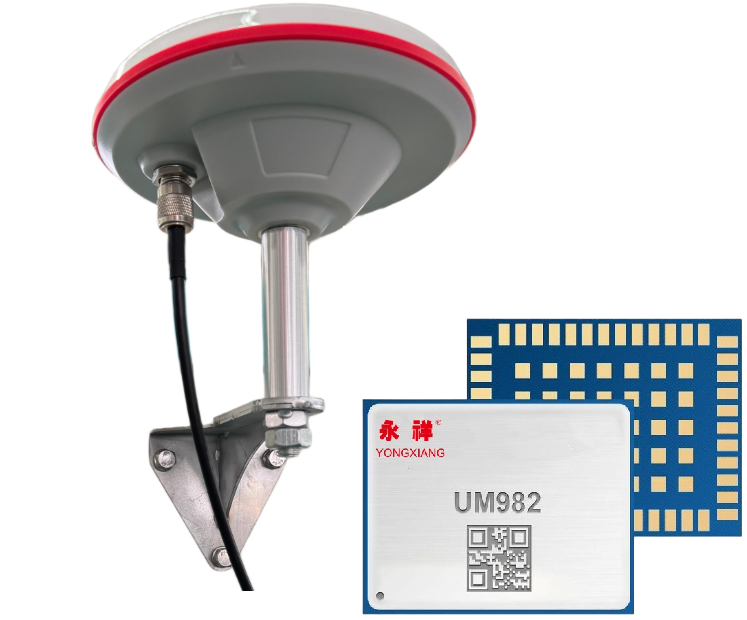

GPS Positioning Chip
Locate the position of the seeder and watch the sowing situation remotely in real time

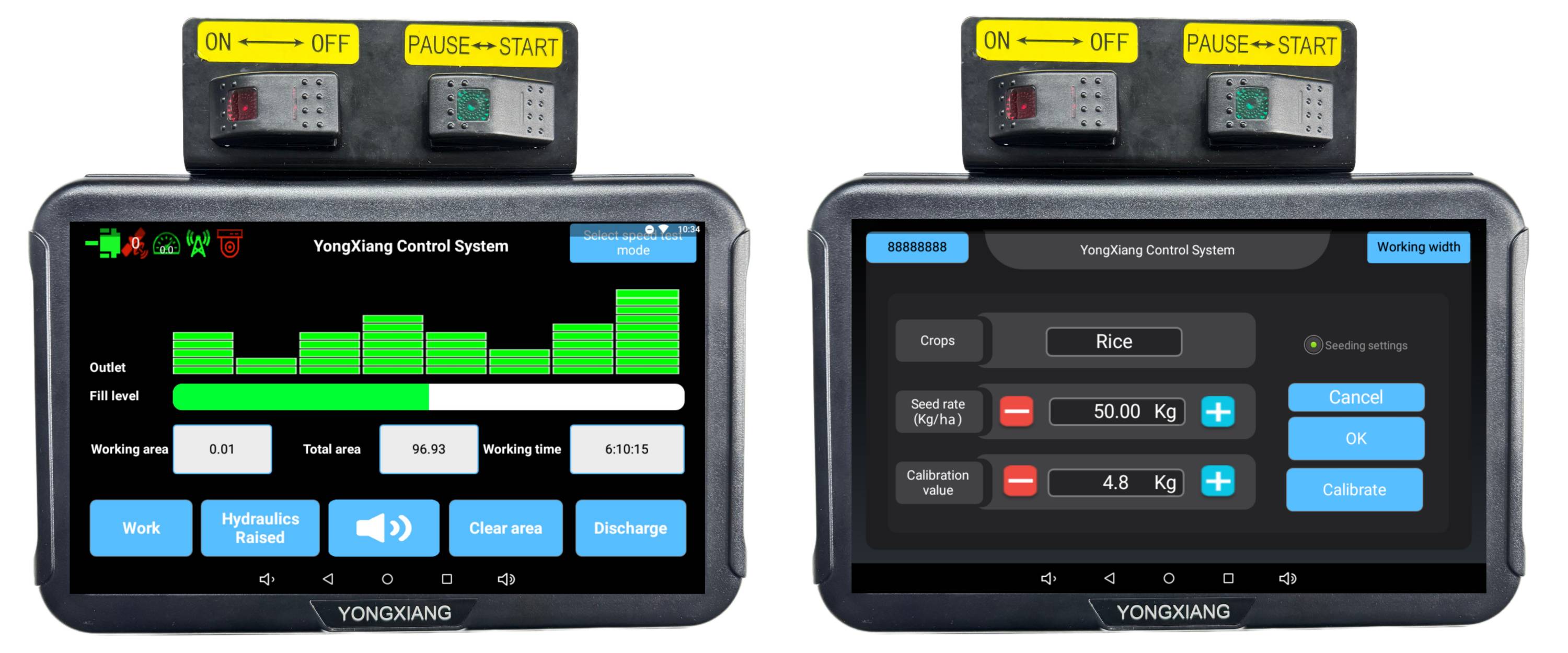

Monitor the seeding process in real time on the console.
Double disc coulter
The double disc coulter with a rubber-tyred depth control
wheel places seeds consistently and precisely at the same
depth even in changing soil conditions and at high ground
speeds. Seeds are then pressed into the soil by the depth
control wheel to ensure optimum soil contact and to support
rapid germination as a result of the optimum water discharge.
The uncompacted areas between crop rows reduce puddling
and erosion.
Broadcast (fan) or row sowing
·Radar for determining speed.
·Soil tillage implement (seeder,rotary tiller,ditching disc,compacting roller,parallel four-bar linkage)
The seed tedder is installed directly above the spool shaft to avoid seed caking and ensure a continuous and gentle seed flow. There is a level sensor at the bottom of the hopper. This allows you to control and timely receive information about the need to load the bunker.
Independent locking and opening of outlets
The seeder is equipped with a specially designed L-shaped plug, with which you can plug the seed tubes if necessary. When the long part of the plug is inserted into the seeder, the corresponding outlet hole is blocked and the seeds do not flow through the hole into the chamber. Otherwise, when the short part of the plug is inserted into the seeder, thecorresponding hole will open and the seeds will flow again.Having a seeder with 8 outputs, it is quite easy to get a unit with 3, 4...7 outputs, depending on the working width of the implement.
GPS Positioning Chip
Locate the position of the seeder and watch the sowing situation remotely in real time
Monitor the seeding process in real time on the console.
Double disc coulter
The double disc coulter with a rubber-tyred depth control
wheel places seeds consistently and precisely at the same
depth even in changing soil conditions and at high ground
speeds. Seeds are then pressed into the soil by the depth
control wheel to ensure optimum soil contact and to support
rapid germination as a result of the optimum water discharge.
The uncompacted areas between crop rows reduce puddling
and erosion.
Broadcast (fan) or row sowing
No. | Item | Unit | Design value | |
1 | Model | / | 2BFG-12(230)A | 2BFG-12(250)A |
2 | Attachment to Tractor | / | 3-point linkage mounted | |
3 | Supporting Power | KW/HP | 88.2-110.3/120-150 | 103-117.7/140-160 |
4 | Dimension(Lxwxh) | cm | 275*255*238 | 275*275*238 |
5 | Working Speed Range | km/h | 2-6 | |
6 | Working Efficiency | hm²/h | 0.46-1.35 | 0.5-1.5 |
7 | Working Width | m | 2.3 | 2.5 |
8 | Tilling Depth | cm | 8-16 | 12-18 |
9 | Row Spacing | cm | 15-30(Adjustable) | |
10 | Working Rows | / | 1-12(Adjustable) | |
11 | Transmission Type Of Rotary Tillage | / | Intermediate transmission | |
12 | Design Speed Of Blade Roller | r/min | 220 | |
13 | Maximum Turning Radius Of The Blade Roller | mm | 245 | |
14 | Rotary Blade Model | / | IT245 | |
15 | Total Rotary Blade Qty | pcs | 64 | 68 |
16 | Seed-Metering Device Type | / | Seed-metering roller+pneumatic delivery | |
17 | Seeder Outlet | pcs | 1-12(Adjustable) | |
18 | Fertilizer Apparatus Type | / | Seed-metering roller+pneumatic delivery | |
19 | Fertilizer Apparatus Outlet | pcs | 1-12(Adjustable) | |
20 | Seeding Trencher Type | / | Disc | |
21 | Seeding Trencher Qty | pcs | 1-12(Adjustable) | |
22 | Seeding Depth Adjustment Range | mm | 0-50 | |
23 | Seed/Fertilizer Hopper Capacity | L | 250/350 | |
24 | Seed Rate Adjustment Method | / | Realized precision sowing through intelligent precision electric drive control system and APP/touch screen tablet control, digital intelligent input, radar speed measurement synchronous control, detection automatic variable adjustment | |

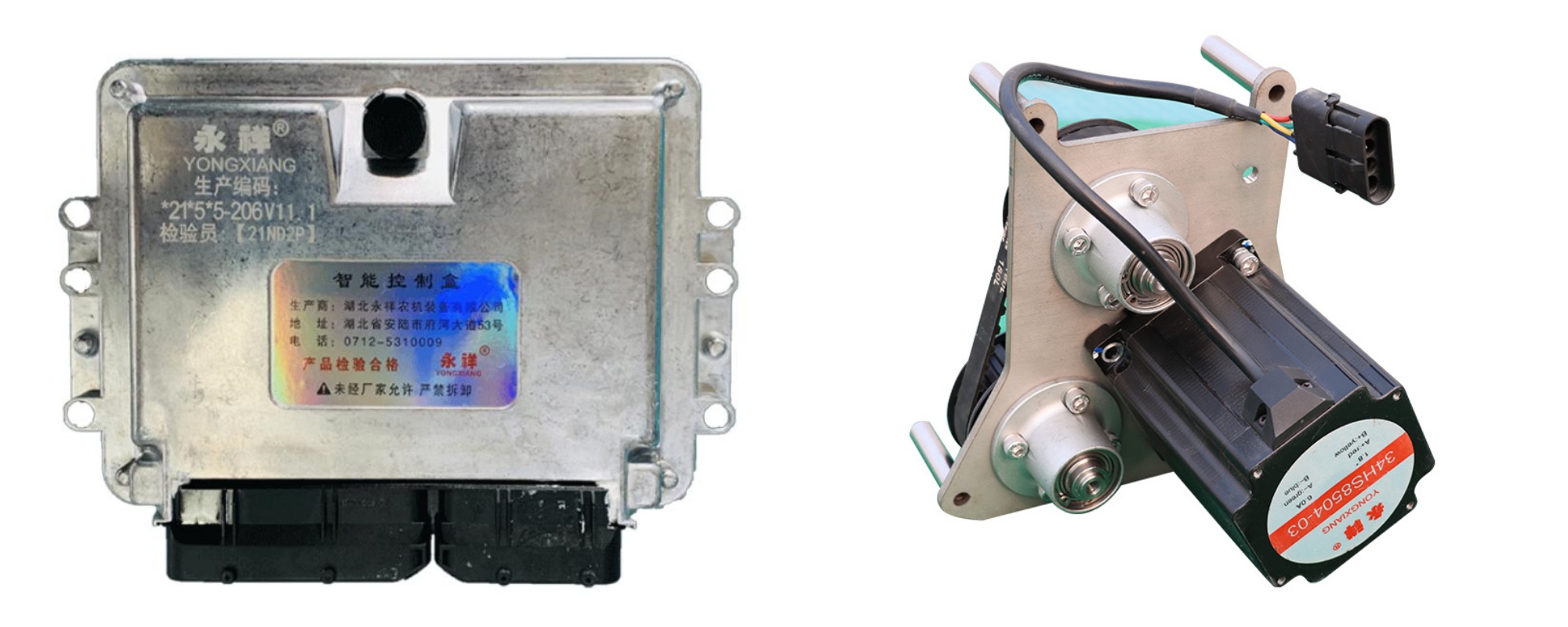

25 | Sowing Transmission Type | / | Stepper motor | |
26 | Blower Fan Type | / | Electric | |
27 | Soil Cover Type | / | Compacting rubber wheel | |
28 | Compacting Equipment Type | / | Compacting roller | |
29 | Single Profiling Mechanism | / | Parallel four-bar linkage |
No. | Item | Unit | Design value | |
1 | Model | / | 2BFG-12(230)A | 2BFG-12(250)A |
2 | Attachment to Tractor | / | 3-point linkage mounted | |
3 | Supporting Power | KW/HP | 88.2-110.3/120-150 | 103-117.7/140-160 |
4 | Dimension(Lxwxh) | cm | 275*255*238 | 275*275*238 |
5 | Working Speed Range | km/h | 2-6 | |
6 | Working Efficiency | hm²/h | 0.46-1.35 | 0.5-1.5 |
7 | Working Width | m | 2.3 | 2.5 |
8 | Tilling Depth | cm | 8-16 | 12-18 |
9 | Row Spacing | cm | 15-30(Adjustable) | |
10 | Working Rows | / | 1-12(Adjustable) | |
11 | Transmission Type Of Rotary Tillage | / | Intermediate transmission | |
12 | Design Speed Of Blade Roller | r/min | 220 | |
13 | Maximum Turning Radius Of The Blade Roller | mm | 245 | |
14 | Rotary Blade Model | / | IT245 | |
15 | Total Rotary Blade Qty | pcs | 64 | 68 |
16 | Seed-Metering Device Type | / | Seed-metering roller+pneumatic delivery | |
17 | Seeder Outlet | pcs | 1-12(Adjustable) | |
18 | Fertilizer Apparatus Type | / | Seed-metering roller+pneumatic delivery | |
19 | Fertilizer Apparatus Outlet | pcs | 1-12(Adjustable) | |
20 | Seeding Trencher Type | / | Disc | |
21 | Seeding Trencher Qty | pcs | 1-12(Adjustable) | |
22 | Seeding Depth Adjustment Range | mm | 0-50 | |
23 | Seed/Fertilizer Hopper Capacity | L | 250/350 | |
24 | Seed Rate Adjustment Method | / | Realized precision sowing through intelligent precision electric drive control system and APP/touch screen tablet control, digital intelligent input, radar speed measurement synchronous control, detection automatic variable adjustment | |
25 | Sowing Transmission Type | / | Stepper motor | |
26 | Blower Fan Type | / | Electric | |
27 | Soil Cover Type | / | Compacting rubber wheel | |
28 | Compacting Equipment Type | / | Compacting roller | |
29 | Single Profiling Mechanism | / | Parallel four-bar linkage |
