2BFG-C Series-Rotary Tilling Seeder And Fertilizer Applicator Wtth Parallel Four-bar Linkage

2BFG-C Series-Rotary Tilling Seeder And Fertilizer Applicator Wtth Parallel Four-bar Linkage

1.YongXiang direct rice seeding Machine for discharging of seed in broadcast sowing,drill sowing.
2.YongXiang precision rice seeder can be used for sowing and fertilizing.
3.Deep placement of fertilizer applicator are robust construction, easy installation and easy handling.
4.Can be mounted on almost transplanter.
5.We have professional technical engineers and we support product customization.

Quantity:
Availability:





Inquire

Model:
2BFG-C Series

Advantages

It can control seeding synchronously, speed-variably,precisely, accurately and intelligently. Its significant advantages are as follows:

1. Rotary tilling, fertilizing, trenching, sowing, soil covering, and compacting can be completed at one time, with high work efficiency;

2. Parallel four-bar linkage profiling structure and independent compacting ensure consistent seeding depth and consistent compacting intensity,and can adapt to various complex terrain conditions;

3. The intelligent control system is equipped with a synchronous radar speed measuring device, which can control the seeding amount synchronously,speed-variably, precisely and accurately, and the sowing accuracy can reach more than 95%.

4. Touch control screen, smart APP, and one-click digital input of agronomic parameters make it easy to control.

5. Equipped with various monitoring and detection devices such as fill lever sensors and blockage sensors,the working status of the equipment is fed back to the user through the touch screen in a dual mode of vision and hearing, allowing users to feel at ease, comfortable and work easily.

6. Seed adaptive system, suitable for 1-10mm granular seeds, such as alfalfa, rapeseed, wheat, barley, rice,soybean,sorghum,granular fertilizer, etc., realizing a true multi-purpose machine.

7. The integrated high-pressure pneumatic conveying structure, modular design, compact structure and easy maintenance.

Design features

8 rows (75L/150L/350L hopper) row range: 1 to 8 outlets (optional)

12 rows (100L/300L hopper) row range: 1 to 12 outlets (optional)

Intelligent tablet app accurately controls seeding volume.
Adjustable seeding rate from 1 to 300 kg/ha.
Equipped with a blower driven by a dual 12-volt electric motor.
The shaft roller is driven by a stepper motor.
The air flow evenly delivers the seeds into flexible plastic hoses.
Radar control synchronizes tractor speed and seed rate for uniform material application regardless of tractor speed.
Multiple seeding rollers (optional), low tank level sensor alarm.

Rugged design, easy to operate and install on most implements.

Working width: 1-3 m.

Standard equipment

·10" control console
·30 m seed lines.
·Standard seeding shaft for granular seeds.
·Cable for connecting to the battery.
·Calibration kit, electronic scales for weighing seeds.

·Radar for determining speed.

·Soil tillage implement (seeder,fertilizer applicator,rotary tiller,ditching disc,compacting roller,parallel four-bar linkage)

Seed dosing mechanism (seeding shaft)

YongXiang seeders use different metering shafts for different types of granular seeds or fertilizer. Correct selection of the shaft ensures accurate seeding dosage. This is extremely important when using low seeding rates and small seed sizes. Replacing the sowing shaft for various granular seeds, such as rice, wheat ,soybean ,sorghum, rape ,maize ,phacelia, lupine, mustard, alfalfa, radish, etc., is carried out without the use of tools.

Application management console (tablet)

The large and contrasting 10-inch console allows the operator to monitor and adjust key planting parameters in any lighting conditions.
Simple operation, calibration, emptying of remaining material, monitoring the seed level in the hopper in real time.

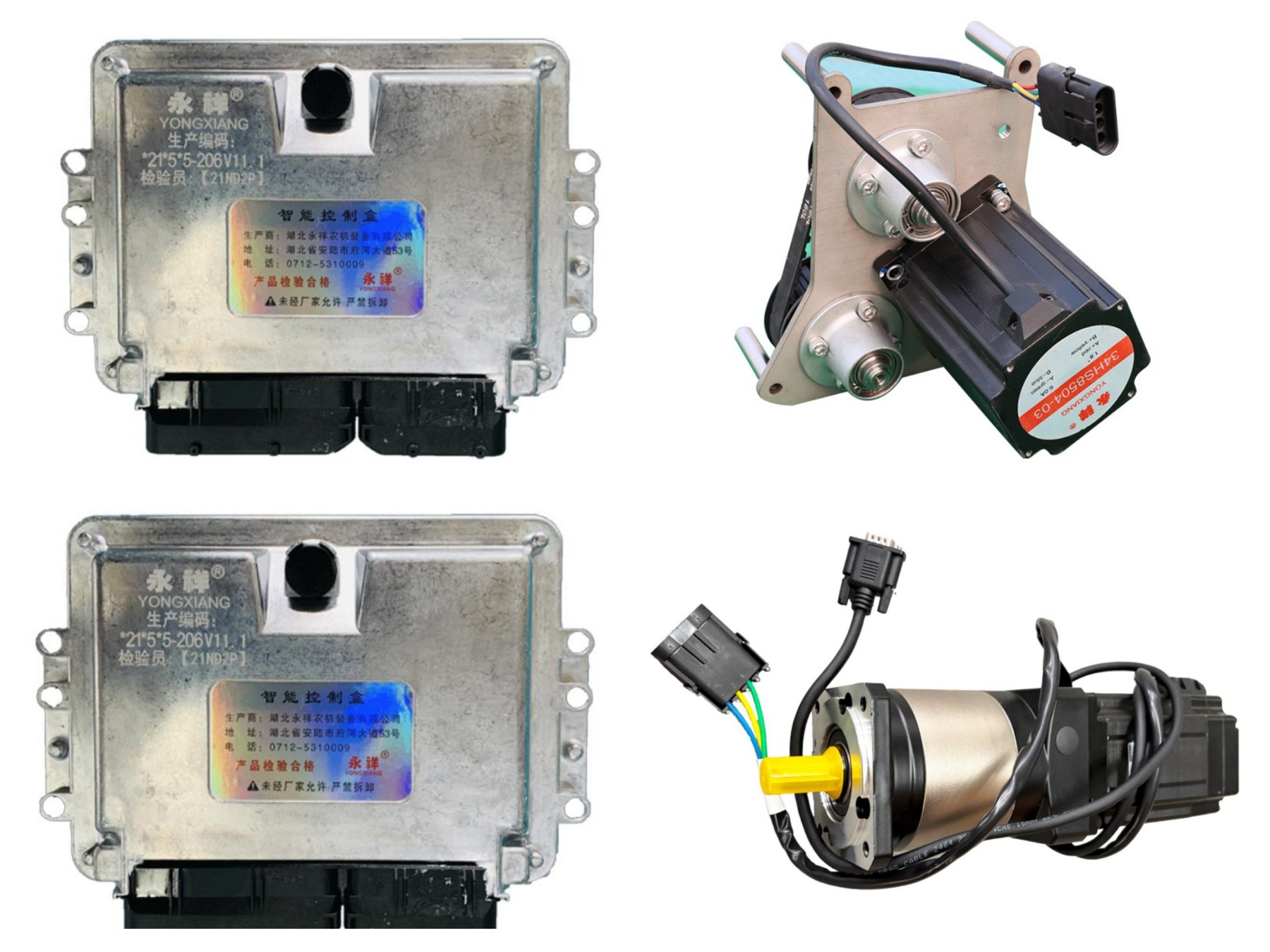

Control system and drive

The exact amount of seed applied is ensured by a correctly selected shaft, precise synchronization of the speed of the metering shaft and the desired value of the seeding rate.

The YongXiang seeder is equipped with a 12V stepless electric motor, which is continuously monitored and adjusted by the central control system to continuously ensure a constant seeding rate.

Electric fan (blower)

Two 12V electric fans create a powerful air flow that instantly transports seeds through the seed tubes to the baffles or pipe tubes, ensuring an even supply of seeds. The fans are protected by an air intake mesh that prevents the entry of straw and debris.

Radar sensor for measuring the speed of the seeder

YongXiang seed drills are equipped with a radar sensor that measures the forward speed and transmits the exact speed to the control console. This ensures synchronized material flow (seeding shaft rotation speed) regardless of whether you are slowing down or speeding up.

Agitator and seed level sensor

The seed tedder is installed directly above the spool shaft to avoid seed caking and ensure a continuous and gentle seed flow. There is a level sensor at the bottom of the hopper. This allows you to control and timely receive information about the need to load the bunker.

Independent locking and opening of outlets

The seeder is equipped with a specially designed L-shaped plug, with which you can plug the seed tubes if necessary. When the long part of the plug is inserted into the seeder, the corresponding outlet hole is blocked and the seeds do not flow through the hole into the chamber. Otherwise, when the short part of the plug is inserted into the seeder, thecorresponding hole will open and the seeds will flow again.Having a seeder with 8 outputs, it is quite easy to get a unit with 3, 4...7 outputs, depending on the working width of the implement.

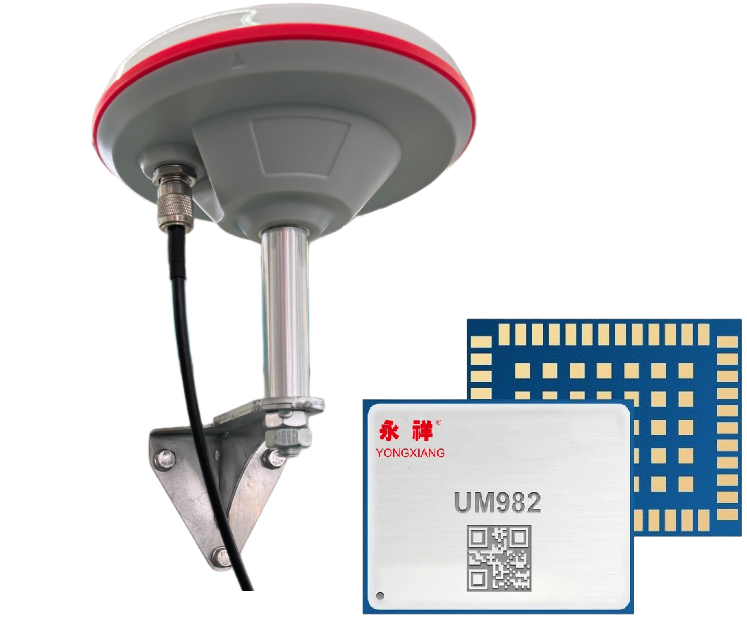

GPS Positioning Chip

Locate the position of the seeder and watch the sowing situation remotely in real time

Camera

Monitor the seeding process in real time on the console.

Seed tube clogging sensors

We came to the conclusion that without sensors for clogging of the seed tubes it is impossible to organize continuous, skip-free sowing. They are therefore included as standard on every seed drill. Information about clogging of the seed tube is displayed on the console.

Broadcast (fan) or row sowing

The seeder ensures uniform distribution of seeds regardless of wind conditions.
The standard equipment of the seeder includes 8 or 12 partitions with U-shaped brackets (bumpers), which are used for fan sowing. When sowing in rows (optional), instead of bumpers, metal outlets in the form of tubes are installed at the end of the seed tubes.

No.

Item

Unit

Design value

1

Model

/

2BFG-8(200)C

2BFG-12(8)(200)C

2BFG-8(10)(230)C

2BFG-12(10)(230)C

2BFG-16(10)(230)C

2BFG-12(250)C

2BFG-16(12)(250)C

2BFG-16(14)(270)C

2BFG-16(300)C

2BFG-24(16)(300)C

2

Attachment to Tractor

/

3-point linkage mounted

3

Supporting Power

KW/HP

44.1-58.8/60-80

73.5-95.6/100-130

88.2-110.3/120-150

95.6-117.6/130-160

110.3-125/150-170

4

Dimension(Lxwxh)

cm

265*220*190

265*255*190

265*275*190

265*295*190

265*325*190

5

Working Speed Range

km/h

2-6

6

Working Efficiency

hm²/h

0.4-1.2

0.46-1.35

0.5-1.5

0.54-1.62

0.6-1.8

7

Working Width

m

2

2.3

2.5

2.7

3

8

Tilling Depth

cm

8-16

12-18

9

Row Spacing

cm

15-30(Adjustable)

10

Working Rows

/

1-8
(Adjustable)

1-12
(Adjustable)

1-8
(Adjustable)

1-12
(Adjustable)

1-16
(Adjustable)

1-12
(Adjustable)

1-16(8*2)(Adjustable)

1-16(8*2)
(Adjustable)

1-24(12*2)
(Adjustable)

11

Transmission Type Of Rotary Tillage

/

Intermediate transmission

12

Design Speed Of Blade Roller

r/min

220

13

Maximum Turning Radius Of The Blade Roller

mm

245

14

Rotary Blade Model

/

IT245

15

Total Rotary Blade Qty

pcs

60

64

68

72

88

16

Seed-Metering Device Type

/

Seed-metering roller+pneumatic delivery

17

Seeder Outlet

pcs

1-8
(Adjustable)

1-12
(Adjustable)

1-8
(Adjustable)

1-12
(Adjustable)

1-16(8*2)
(Adjustable)

1-12
(Adjustable)

1-16(Adjustable)

1-16
(Adjustable)

1-24(Adjustable)

18

Fertilizer Apparatus Type

/

Outer fluted roller

19

Fertilizer Apparatus Outlet

pcs

1-8(Adjustable)

1-10(Adjustable)

1-12
(Adjustable)

1-12(Adjustable)

1-14(Adjustable)

1-16
(Adjustable)

1-16(Adjustable)

20

Seeding Trencher Type

/

Disc

21

Seeding Trencher Qty

pcs

1-8
(Adjustable)

1-12(Adjustable)

1-8(Adjustable)

1-12(Adjustable)

1-16(Adjustable)

1-12 (Adjustable)

1-16(Adjustable)

1-16
(Adjustable)

1-24(Adjustable)

22

Seeding Depth Adjustment Range

mm

0-50

23

Seed/Fertilizer Hopper Capacity

L

75/260(130*2)

100/260(130*2)

75/310(155*2)

100/310(155*2)

150(75*2)/
310(155*2)

100/(130*2)

150(75*2)/
340(170*2)

150(75*2)/
370(185*2)

150(75*2)/
400(200*2)

200(100*2)/
400(200*2)

24

Seed Rate Adjustment Method

/

Realized precision sowing through intelligent precision electric drive control system and APP/touch screen tablet control, digital intelligent input, radar speed measurement synchronous control, detection automatic variable adjustment

25

Sowing Transmission Type

/

Stepper motor

26

Blower Fan Type

/

Eletric

27

Soil Cover Type

/

Compacting rubber wheel
